Using an R Dataframe as a Power BI source

Lee Hawthorn June 15, 2019 #PowerBI #R

Power BI can use a wide variety of data sources. This is one of the things that makes it very powerful.

In this post I show how you can use an R script as a data source.

If you have folks in your team that can program R you can take advantage of the power that R gives you i.e. run predictive analysis such as time series analysis or predict customer churn and all sorts of other analysis. Of course, you can learn it yourself too.

All you need to do is provide an R data frame at the bottom of your R script.

Here's a simple script you can use that queries Google Trend data.

require("magrittr")
require("dplyr")
require("trendyy")

terms <- c("Boris Johnson", "Dominic Raab",
           "Jeremy Hunt", "Rory Stewart","Michael Gove")

terms_trends <- trendy(terms, from = "2019-06-01",
                       to = Sys.Date(),
                       geo = c("GB"))


interest <-  as.data.frame(terms_trends %>% get_interest())

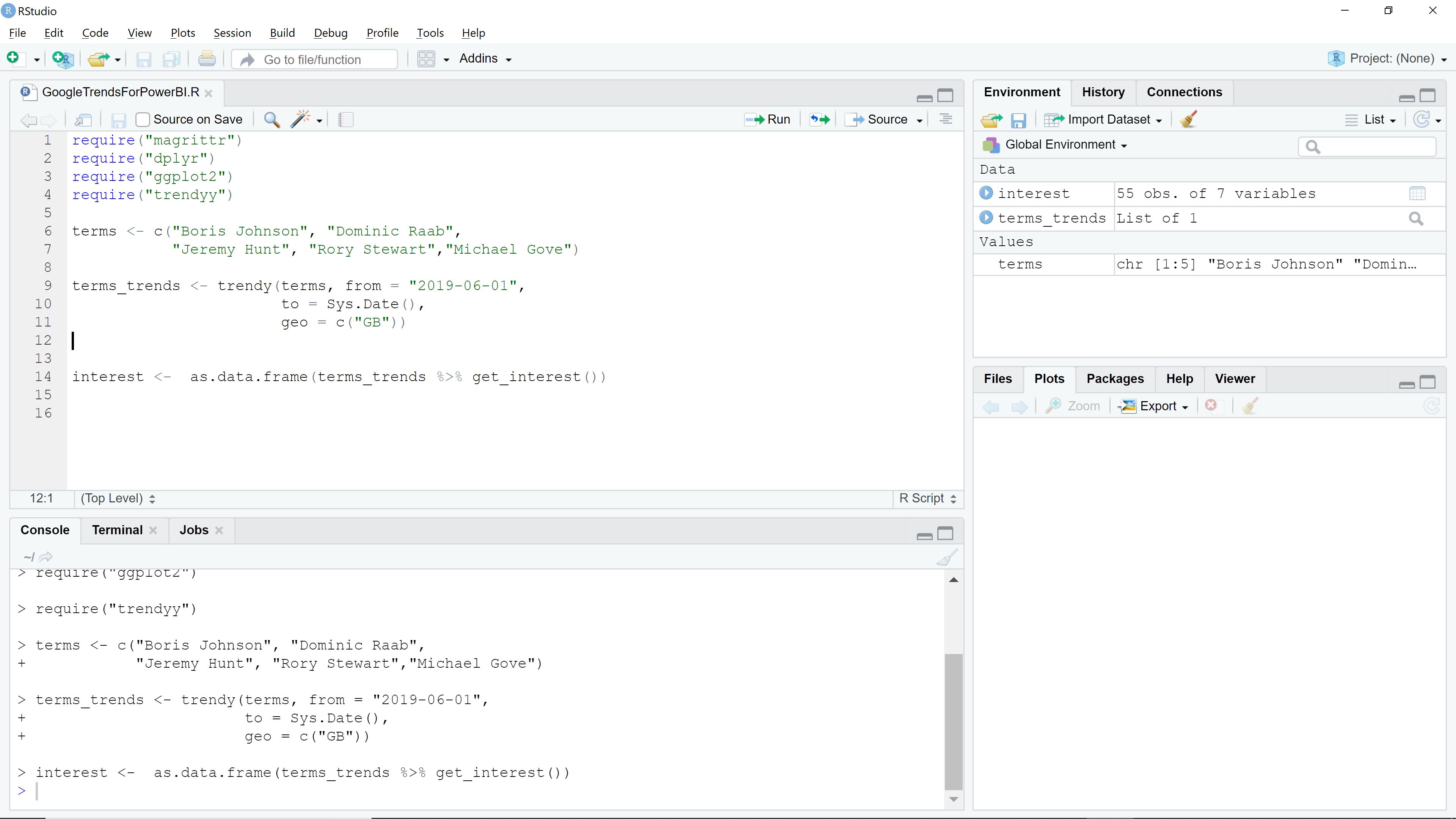

You can see in R Studio that interest is a data frame with 55 observations and 7 variables. Note, there is other data in the list but I'm only extracting a single data frame using the function within the list: get_interest().

Rscript

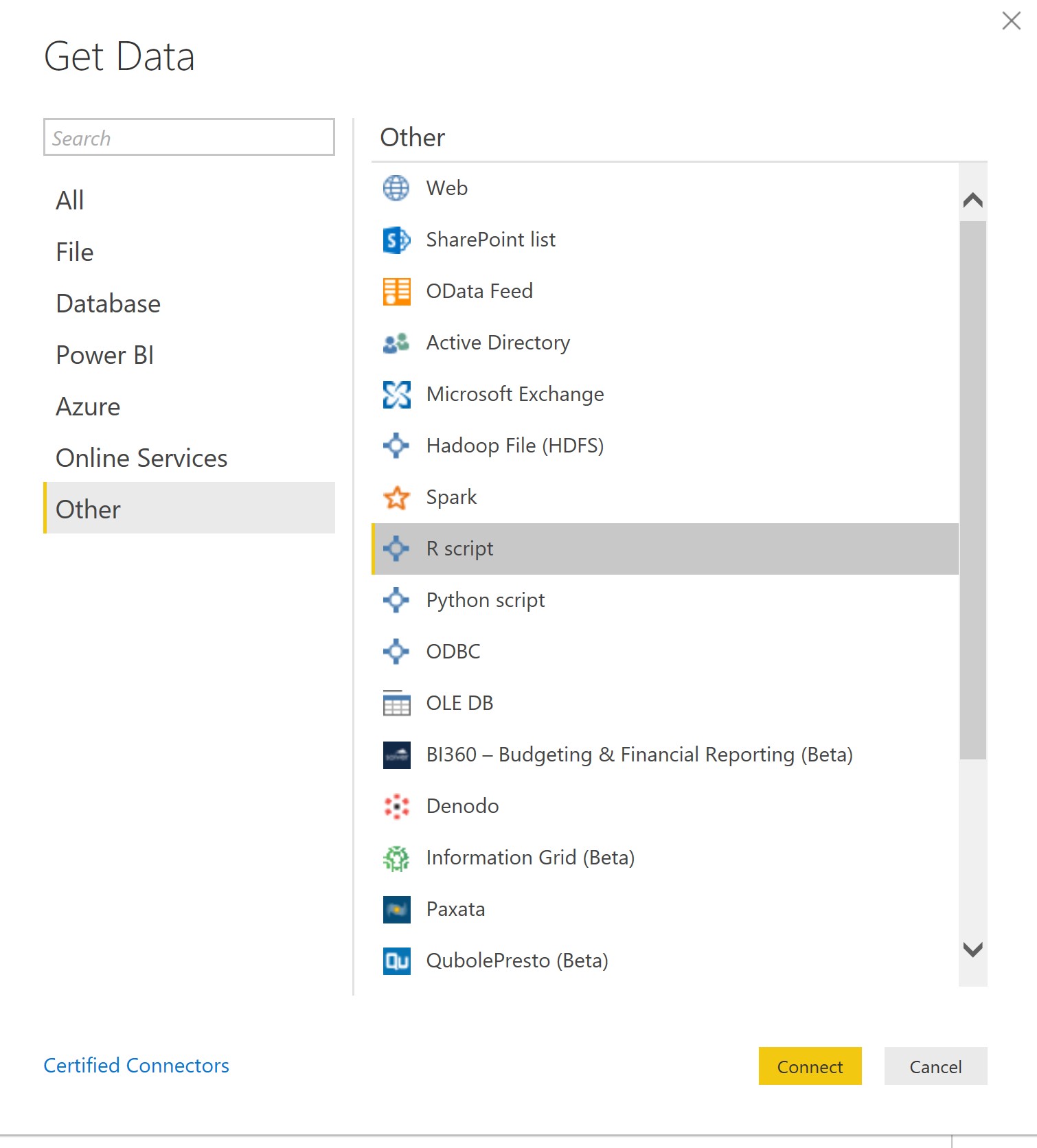

When you have the script running in R Studio copy the code and open Power BI and select Get Data. Select R Script from the Other menu.

GetDate

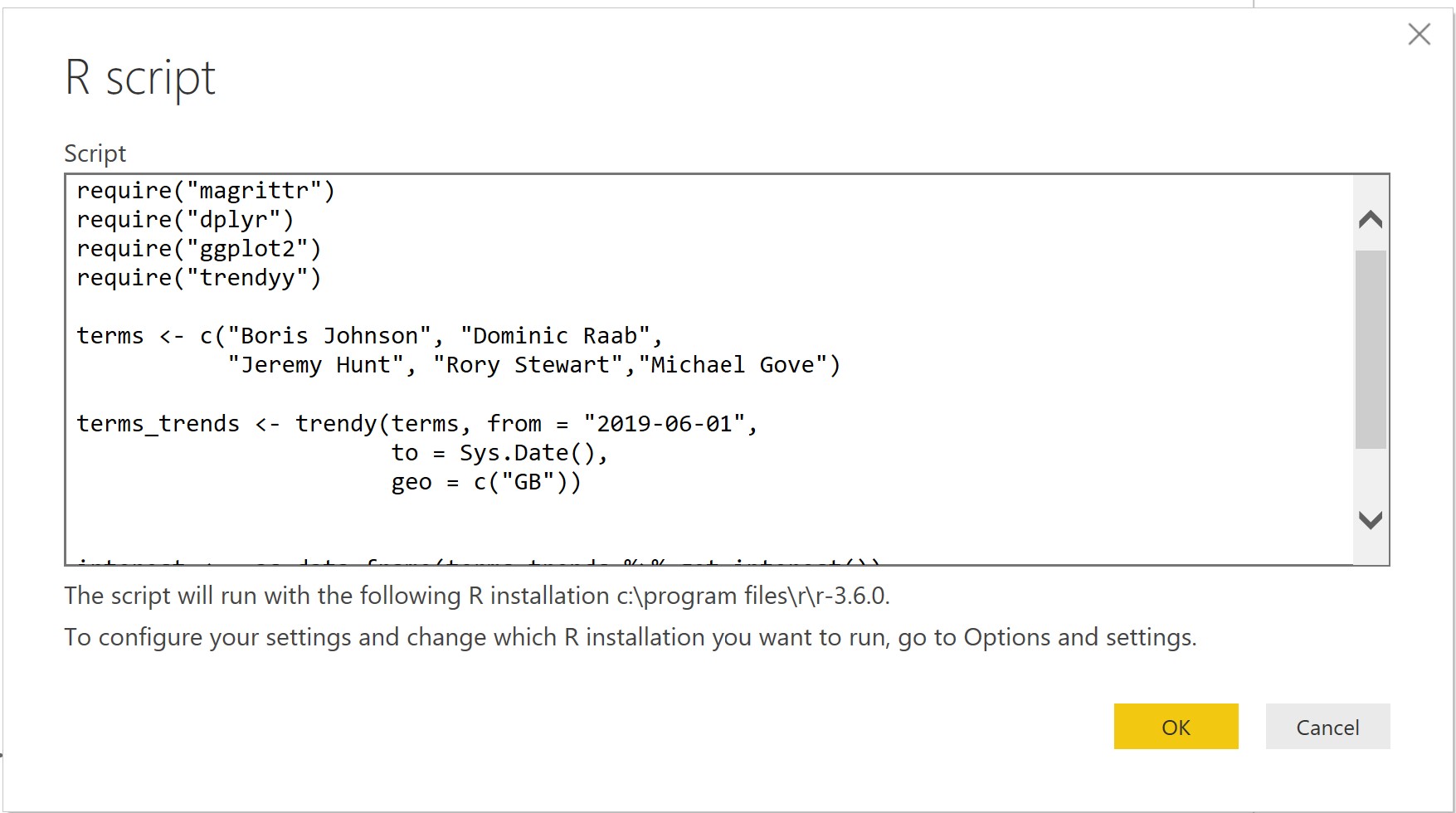

You can then paste in the script.

PasteScript

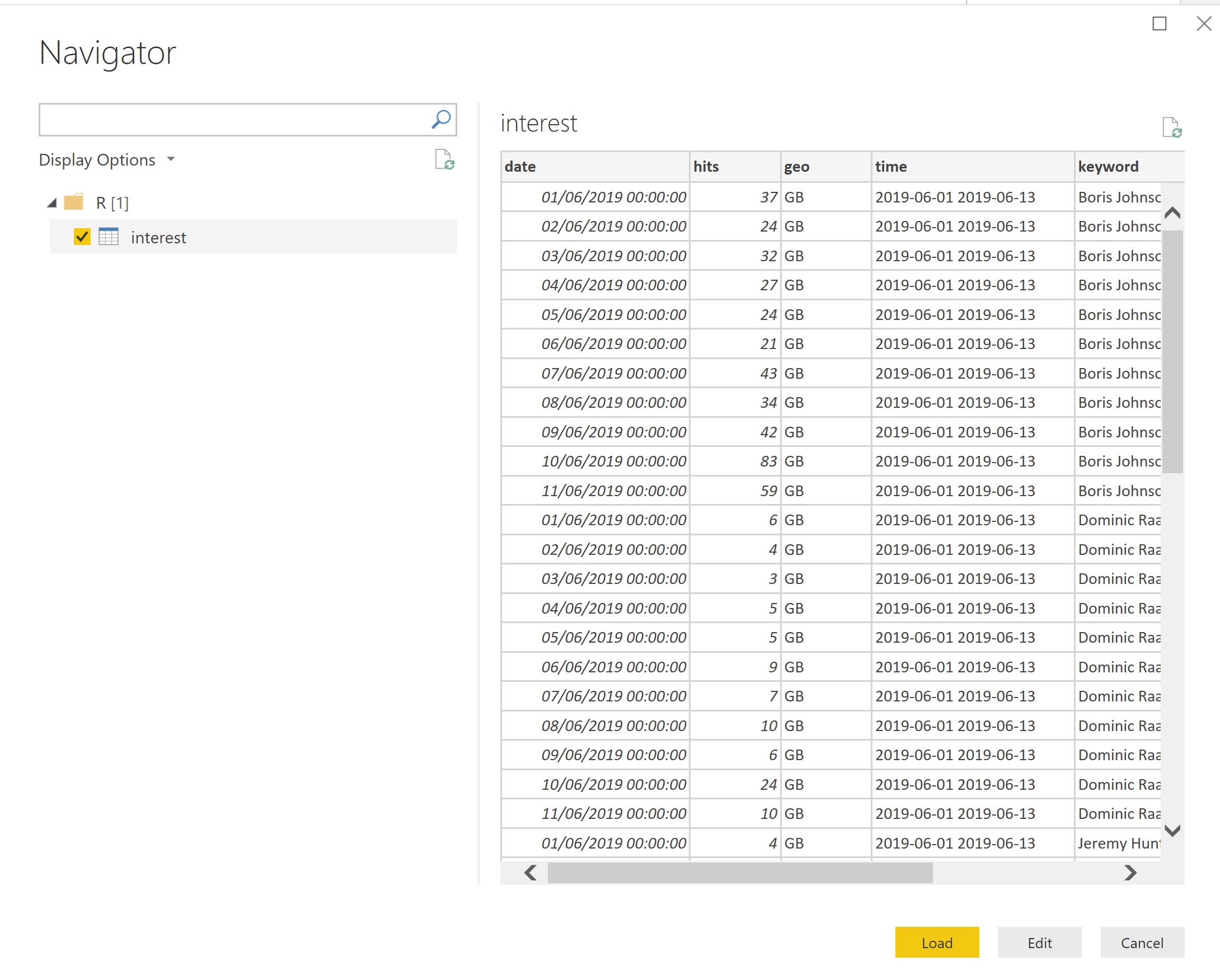

At this point Power BI will run the R code and return the data.

Load

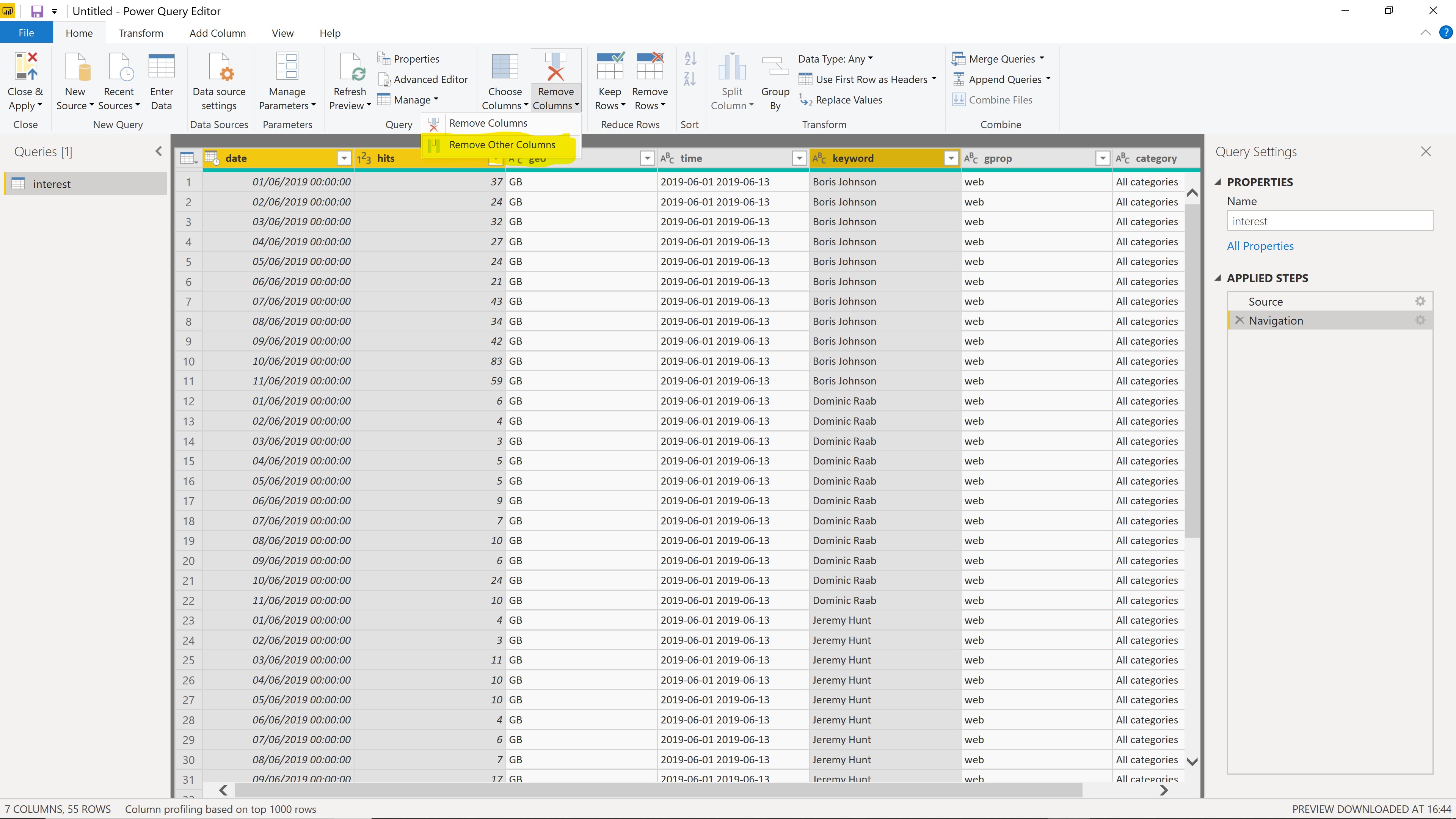

I want to remove some columns so I click Edit. Select the Date, Hits, Keyword column and then select from the menu : Remove Columns : Remove Other Columns

Edit

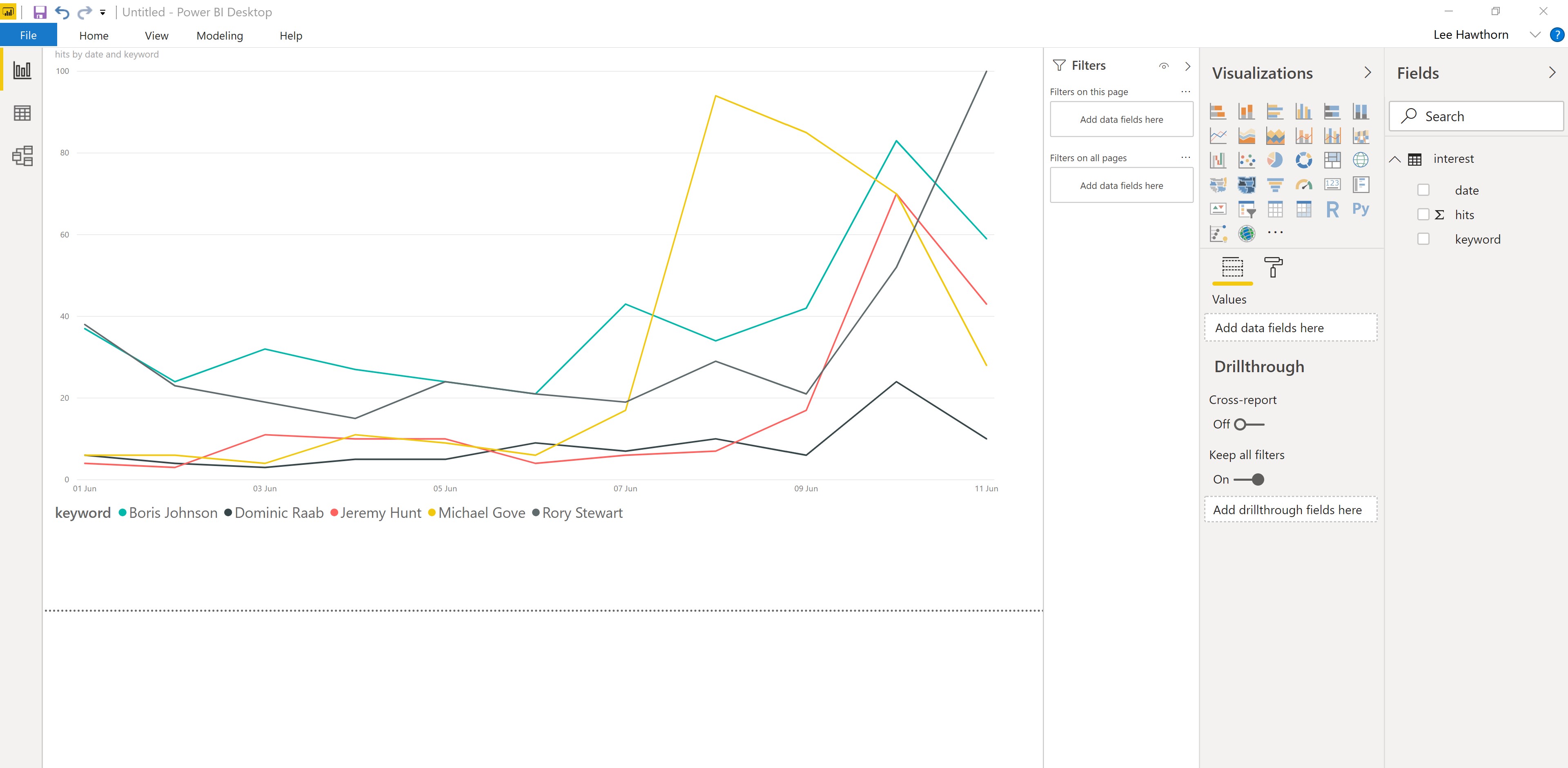

You can close and apply as per usual and create whatever visual you need.

Chart

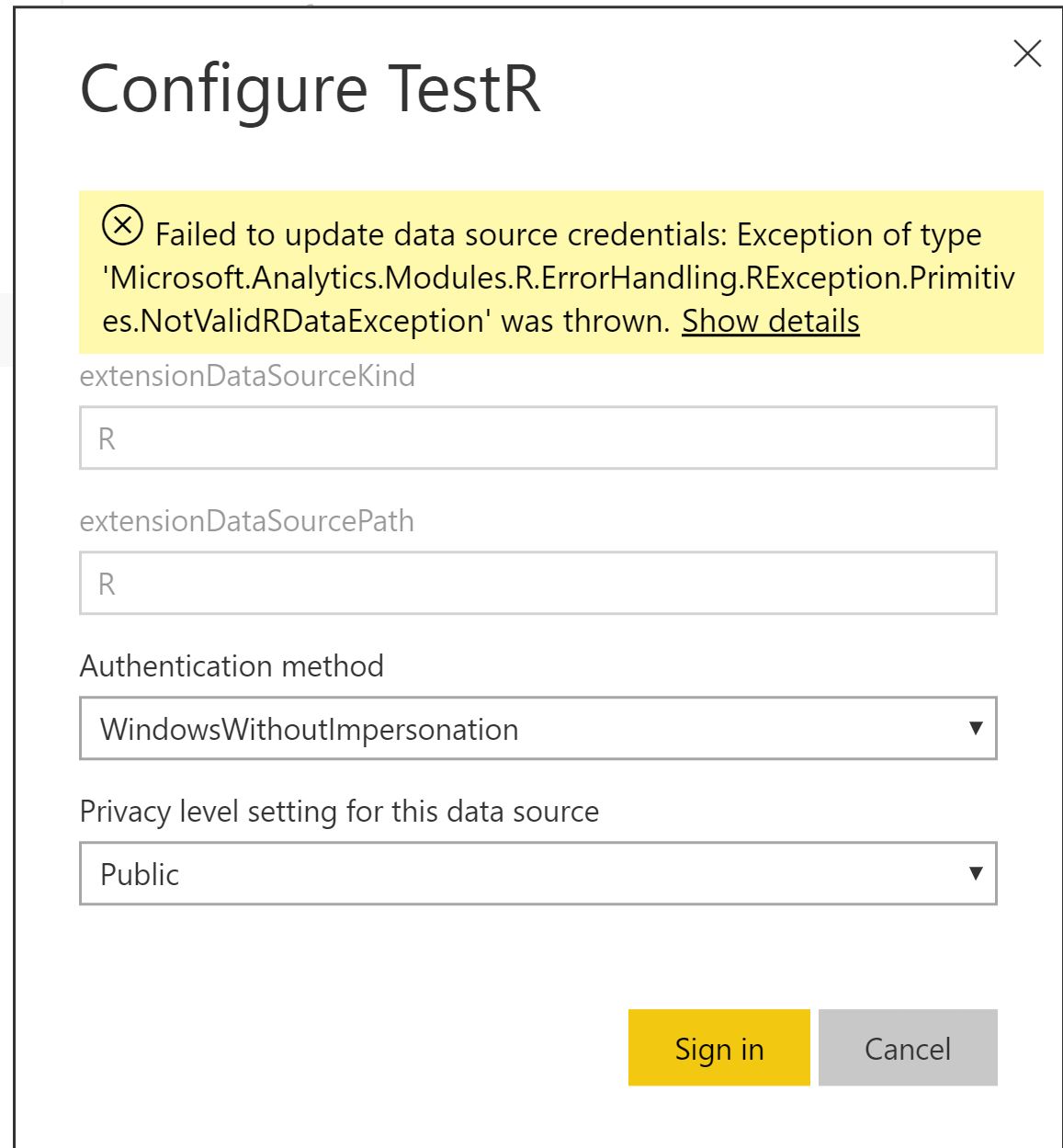

You can publish the PBIX to a workspace and refresh it through a Gateway. I tried to do this but I received a error :

Refresh

I tried with even simpler R but this had the same error. Hopefully this bug will be sorted out.

Many folks are experiencing this problem.

Summary

Being able to run R scripts unlocks the power in the R ecosystem. You're also able to process R visuals too.

It would be great if the R code could be run in the service so code like the example could refresh without a gateway. I suppose this is too much to ask. Hopefully Microsoft sort out the Bugs with the refresh.
